New Arrival AC220-240V 7A 5.8GHz 360 Degree Time Setting Microwave Sensor Radar Body Sensor Motion HF Detector Light Switch

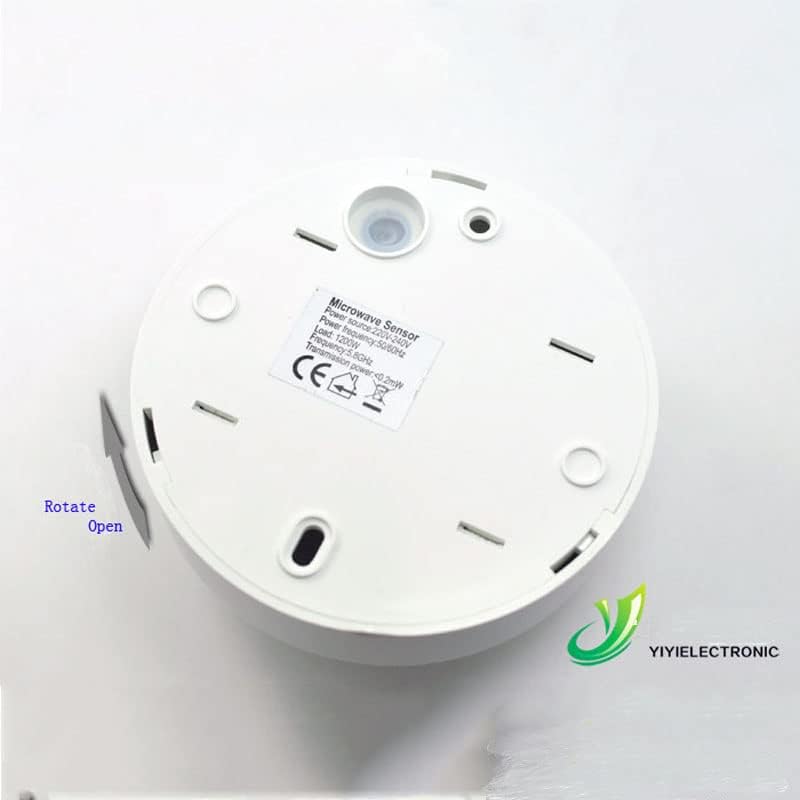

Microwave Motion Sensor-ceiling 1. Product introductionSK-700��is an active motion detector with adjustable sensitivity, daylight detection and time setting. It���s based Doppler principle and RADAR technology, adopting rod antenna & high performance micro-chip. It is easy to install, provide high probability of detection, low nuisance alarms and resistance to rain, fog, wind, dust, falling snow and temperature extremes �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ����.2.Note:��the high-frequency output of this sensor is <0.2mW that is just one of the transmission power of a mobile phone 3. Installation procedure 3.1 Take down the top cover by turning it anti-clockwise (see fig.1), 3.2 Hold base against the wall and mark drill holes, paying attention to any existing wiring in the wall 3.3 Drill the holes, insert wall plug (6mm dia.) 3.4 Put the power wire and load wire through the base holes 3.5 Screw the base into place (see fig.2) 3.6 Connect the mains power supply and the load wire to the connection terminal according to connection-wire mark 3.7 Fit glass shad and turn it clockwise (see fig.2) �� 4. Wiring diagram5. SettingsDetection range setting (Sensitivity)Detection range is the term used to describe the diameter to the more or less circular detection zone produced on the ground after mounting the sensor light at a height of 2.5m, turn the detection control fully anti-clockwise to select minimum detection range (approx. 1m), and fully clockwise to select maximum detection range (approx. 8m). Time settingThe light can be set to stay ON for any period of time between approx. 8��sec (turn fully anti-clockwise) and a maximum of 12min (turn fully clockwise). Any movement detected before this time elapse will re-start the timer. It is recommended to select the shortest time for adjusting the detection zone and for performing the wa
