VEVOR 150HP Hydraulic Outboard Steering Kit Boat Marine System, Built-in Two-Way Lock Cylinder, 150HP Pump and High-Strength Nylon Hose for Single Station, Single-Engine use
4.3 (87 items)
Limited Time Sale$245.35 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216643135 | Release Date | 2026/04/19 | List Price | $163.56 | Model Number | 216643135 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
150HP Hydraulic Outboard Steering KitHK4200A-3 & Compact Cylinder & Low-friction HelmVEVOR hydraulic steering kit allows you to install of hydraulic steering onto your 150 HP max. (or less) outboard-powered boats. Our steering kit consists of a low friction helm for smooth and comfortable steering. A balanced cylinder –featuring a compact design. For your convenience, two lengths of 20' hoses and fill tubes are supplied for easy operation.Note: Hydraulic oil is not included with this kit.SpecificationsModel: HK4200A-3Part Number: HK4200A-3, HA4643Application: Up to 150HPPumps: NR150Cylinders: MR150Max Pressure: 6.9Mpa (1000psi)Output Force: 409.7kgfVolume: 118 ccTube I.D:Φ31.8 mmRod I.D: Φ16mmStrode: 197.3 mmPackage Content1 x Hydraulic Pump2 x 20ft Hose1 x Cylinder1 x Accessory Kit

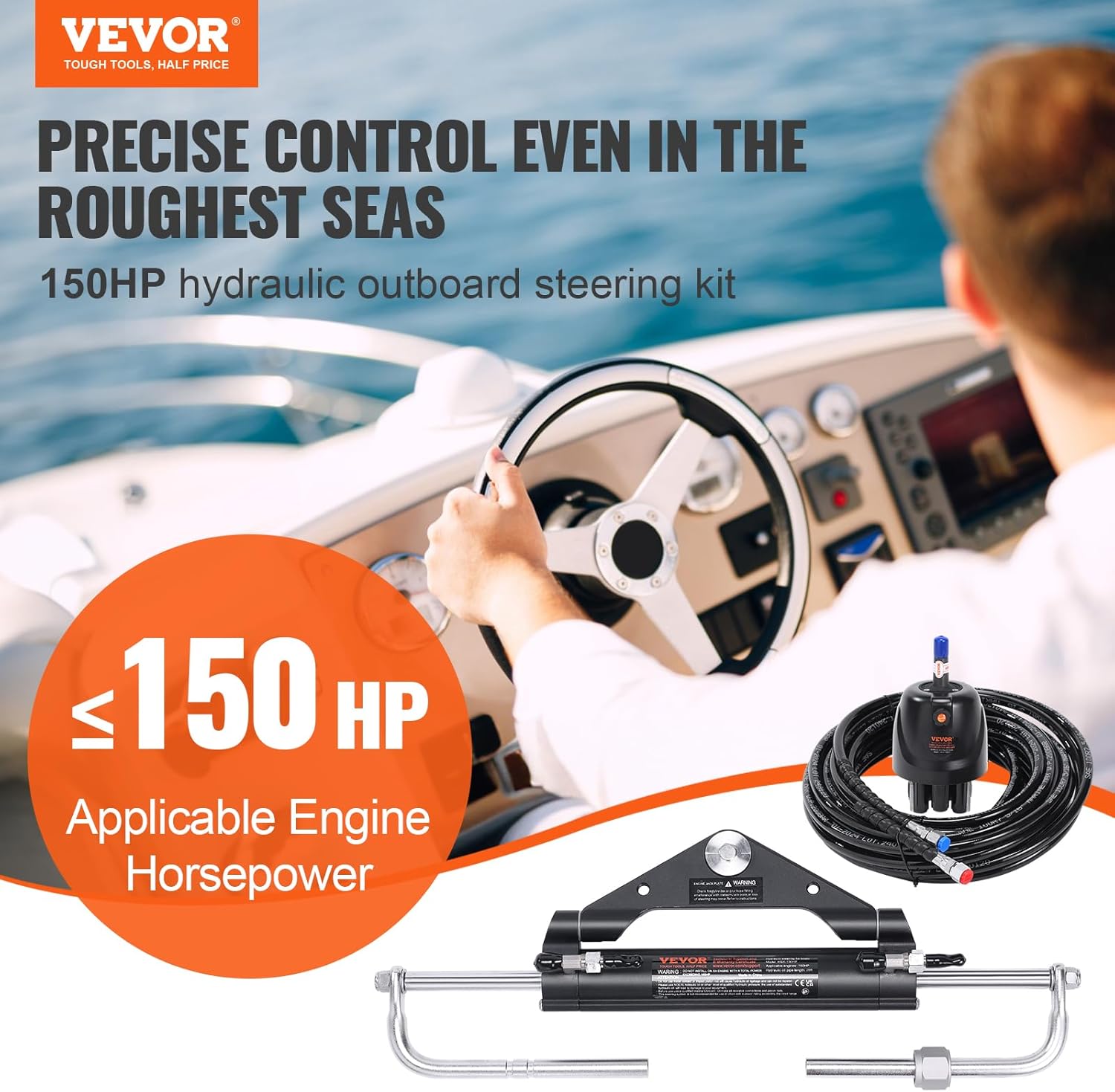

- 150 HP Hydraulic Steering Kit: The HK4200A-3 hydraulic outboard boat steering kit includes a balanced steering cylinder, a low-friction helm, two lengths of 20ft hose, and a fill kit. It will perfectly replace your aging or broken equipment.
- Built-in Two-way Lock Cylinder: Output force: 409.7 kgf. The cylinder has a built-in two-way locking valve, which eliminates rebound torque during torsion. The robust barrel design and the sealing system can withstand the harsh environment.

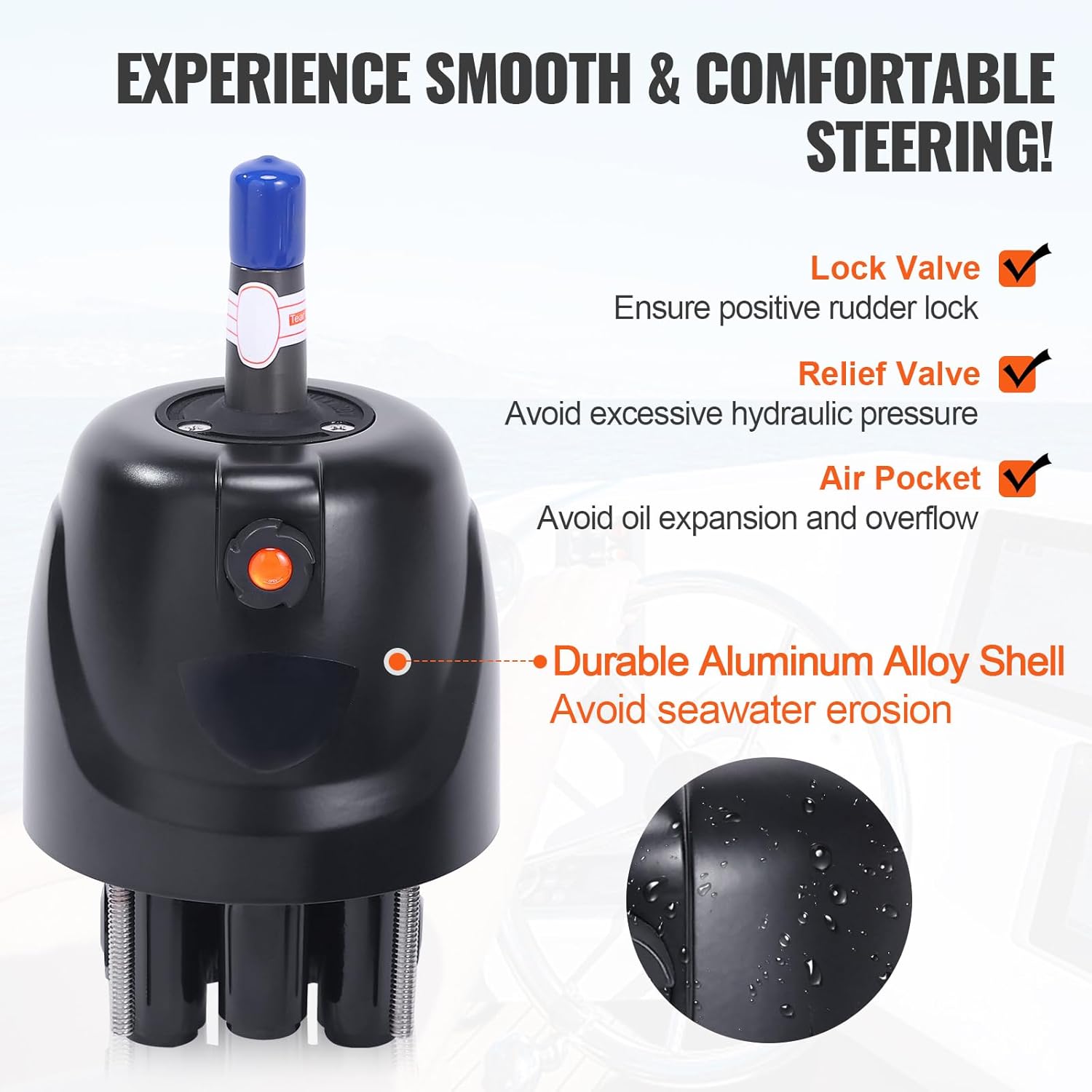

- Max. 150HP Helm Pump: Max. Working pressure: 6.9 Mpa/1000 psi. The low friction helm for smooth and comfortable steering. And it has a replaceable shaft seal that can be easily replaced.
- Cut-to-length Hoses: Our high-strength nylon hose is equipped with quick-fit 1/4'' pipe fitting for easy and fast installation and multiple re-uses. Each hose is 20' long and can be cut for your specific installation, accommodating most boats.
- Great Partner for Your Boat: Our hydraulic steering kit is for single-outboard powered boats rated up to 150 HP, including runabouts and inflatables — and outboard engines with ABYC standard engine tilt tubes up to 150 HP (total). For single station, single-engine use only.
| UPC | 840349915487 |
|---|---|
| Color | Black |
| Fuel Type | Gasoline |
| Brand Name | VEVOR |
| Unit Count | 1.0 Count |
| Engine Type | Outboard |
| Item Weight | 20 Pounds |
| Manufacturer | VEVOR |
| Model Number | Hydraulic Outboard Steering Kit |
| Material Type | Metal |
| Mounting Type | Engine Mount |
| Item Type Name | Outboard Steering Kit |
| Maximum Horsepower | 150 Horsepower |
| Included Components | 1 x Accessory Kit, 1 x Cylinder, 1 x Hydraulic Pump, 2 x 20ft Hose |
| Manufacturer Part Number | exvsz1rgjr |
| Recommended Uses For Product | For Salt Water |
